Troubleshooting
LiftMaster Blink Codes: What the Flashes Mean
By HUSH Garage Door Service· Updated
A blinking LiftMaster is reporting a fault code, not a dead bulb. Count the flashes near the orange Learn button, then match the number below. Codes of 1, 2 and 4 flashes mean the safety sensors, and 3 means the wall control.
Do this, in order
-
Press the button and count the flashes
Press the wall button and watch the LED next to the orange Learn button on the motor head. It flashes a count, pauses, then repeats. That repeating number is your LiftMaster blink code. Note it before you touch anything.
-
Start at the safety sensors
Look at the two photo-eye sensors near the floor on each side of the door. Clear boxes, bins, cobwebs, or snow, then wipe both lenses with a dry cloth. One sensor should glow steady amber and the other steady green when aligned.
-
Realign any sensor whose light is out
If a sensor LED is off, dim, or flickering, loosen the wing nut and nudge the bracket up or down until both LEDs glow steady at the same time. Drooping brackets are the single most common LiftMaster blink-code cause.
-
Inspect the sensor wiring for a 1 to 2 blink code
For a low blink count, follow each sensor wire up to the motor head. Look for a staple through the insulation, a chewed spot, or a wire crushed behind a shelf bracket. A pinched or shorted wire triggers the same fault as a blocked beam.
-
Power-cycle once after a storm or outage
If the LiftMaster started blinking after a storm or outage, unplug it for a full 30 seconds, reset any tripped GFCI outlet on the circuit, then plug it back in. Then count the flashes again, because a one-off glitch clears and a real fault returns.
-
Test one full cycle
Run the door through one complete open and close cycle and confirm the LED stays solid. If the same blink count returns, note the number and call a factory-trained technician for LiftMaster opener and sensor repair.
Stuck, or the door is under spring tension? Stop and call (343) 700-1077.
Why is my LiftMaster blinking?
A blinking LiftMaster is showing a diagnostic fault code, not a burned-out work light. The motor head flashes a set number of times, pauses, then repeats. That repeating count is the code, and on most LiftMaster openers the most common code is a blocked or misaligned safety sensor.
LiftMaster, Chamberlain, and Craftsman all share the same Security+ 2.0 platform, so their blink codes line up. The opener flashes to report exactly what it cannot do, whether that is a beam it cannot see through, a wire it cannot read, or a motor speed it cannot track. Sensors trigger far more codes than logic boards do, so always start at the floor. For a side-by-side view of every brand, see our guide to all opener brand blink codes decoded.
How to read the blink code on a LiftMaster
Read a LiftMaster blink code by pressing the wall button and watching the small LED next to the orange Learn button on the motor head. It flashes a count, pauses, then repeats. Note the number before you touch anything, because that number tells you exactly where to start.
The six steps at the top of this page walk you through it. In short, count the flashes, check the safety sensors first, inspect the sensor wiring for a low count, and power-cycle once after an outage. A lighted multi-function wall control mirrors the same code, so you can read it from inside the garage without standing under the motor. Match your count to the chart below.

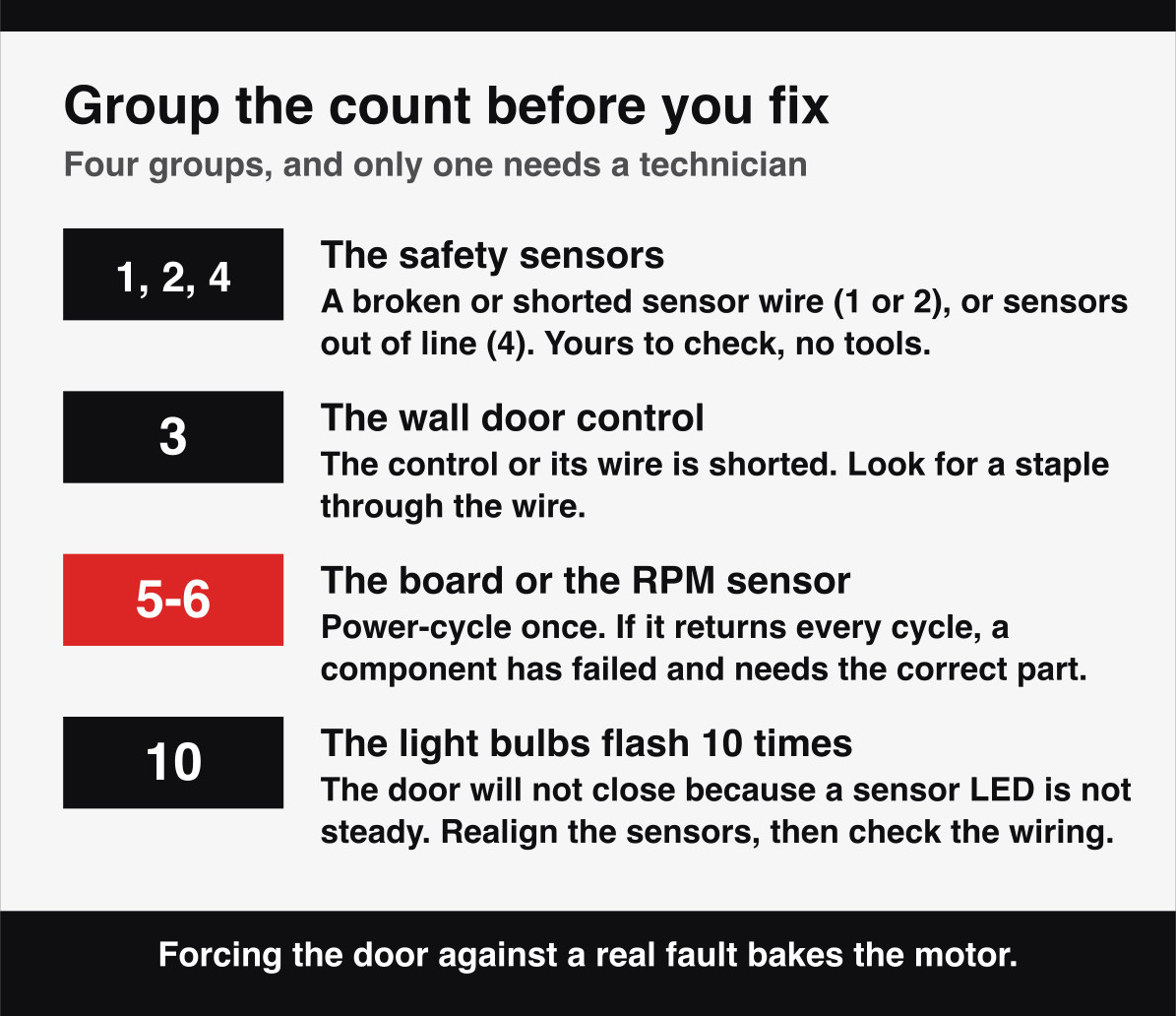

What does each LiftMaster blink code mean?
The table below covers the LiftMaster blink codes Ottawa homeowners hit most on trolley (rail) openers, where the motor hangs from the ceiling and pulls the door along a rail. The counts and the light bulb row follow Chamberlain Group’s Learn button LED guide; wall-mount openers have their own chart, covered further down. Counts can vary slightly by model year, so treat the ranges as a starting point and confirm with your manual if the count is unusual.
| Blinks | What it means | First thing to try |
|---|---|---|
| 1 to 2 | Safety sensor wiring shorted or a wire pinched | Inspect both sensor wires for staples, breaks, or crush points |
| 3 | Wall door control or its wire shorted | Look along the control wire for a staple or crush point |
| 4 | Safety sensors misaligned or blocked | Clear the beam path, realign until both LEDs glow steady |
| 5 to 6 | Logic board or RPM/motor-sensing fault | Power-cycle once, then call for board service |
| 10 flashes of the light bulbs | The door will not close, a sensor LED is not steady | Realign the sensors, then check their wiring |
What do 1 to 4 blinks mean on a LiftMaster?
One to four blinks on a LiftMaster is a sensor or wall-control fault, and 3 of the 4 counts point at the safety sensors. One or two blinks means a broken, shorted or reversed sensor wire, and four means the photo eyes are out of alignment. Three blinks is the exception: it points at the wall door control or its wire, not the sensors. This is the easiest LiftMaster code to clear yourself.
Each sensor sits near the floor on a bracket. When the pair is aligned and the path is clear, one glows steady amber and the other steady green. A light that is off, dim or flickering means the beam is broken.
Clear boxes, bins, cobwebs and drifted snow from the beam path. Wipe both lenses with a dry cloth. Loose wing nuts let a bracket droop over months, so nudge each sensor until both LEDs hold steady.
On a one or two blink count, follow each wire up to the motor head instead. Look for a staple through the insulation, or a wire crushed behind a shelf. This is the same pattern behind a blinking opener that will not close the door.
If realignment never holds, a sensor head or its wiring may be failing. That is a garage door safety sensor repair.
What do 5 to 6 blinks mean, the logic board or the RPM sensor?
Five to six blinks points at the logic board or the RPM sensor that tracks motor speed. The opener has lost confidence in how far or how fast the motor is turning, so it stops and flashes rather than risk crushing something in the door’s path.
Try one power cycle first. A brief electrical glitch can throw this code once. Unplug the opener for 30 seconds, then plug it back in.
If five or six blinks return every cycle, the control board or the motor’s RPM sensor is failing. That needs a technician with the correct LiftMaster part. Forcing the door against this code repeatedly burns out the motor.
A failed board on an aging unit is often the point where a fresh LiftMaster opener repair beats chasing parts.
What do the UP and DOWN arrow codes mean on a newer LiftMaster?
Newer LiftMaster and Chamberlain openers with UP and DOWN arrow buttons show a two-part code. Count the UP arrow flashes, then the DOWN arrow flashes. A 1-1 is a sensor fault, while a single “1” on an older opener means something else, so read both halves before you look anything up.
| Code (UP, DOWN) | What you see | First thing to try |
|---|---|---|
| 1-1 | Door starts closing, then reverses | Clear the sensor beam and realign until the green sensor LED is steady |
| 1-2 | Door stays open and will not close | Check the sensor wire colours and look for a pinched or stapled wire |
| 1-5 | Opener hums or clicks, door barely moves | Look for an obstruction; the travel module may need replacing |
| 1-6 | Door drifts down or moves on its own | Stop using it and have the door balance checked |
| 2-1 to 2-5 | Opener does not respond at all | Disconnect the battery, unplug the opener for 5 seconds, reconnect |
| 3-5 | Door reverses mid-close on a wall-mount opener | Cable tension monitor or a slack cable; book a technician |
| 4-1 | Door reverses, stops or struggles while closing | Clear the path and check rollers and hinges |
| 4-2 | Door stops before it fully opens | Clear the path; have the door balance tested |
| 4-3 | Door stops and reverses before the floor | Check the tracks, rollers and hinges |
| 4-4 | Door slows and stops before it fully opens | Springs or balance; book a technician |
| 4-5 | Door will not move, opener does not recognise its hardware | The travel module must match the opener model |
| 5-5 | App and schedules are ignored, wall button works | Add a compatible myQ light, or turn the schedules off |
The codes and fixes follow Chamberlain’s garage door opener diagnostic codes article. A pair that is not in this table is in your model’s manual.
Do wall-mount LiftMaster openers flash the same codes?
No. Wall-mount LiftMaster openers, the jackshaft units that bolt beside the door, use their own charts, so the trolley table above does not apply to an 8500 or a 98022.
The older LiftMaster 8500 flashes a single diagnostic LED. Its Model 8500 manual, printed page 30, reads 9 flashes as a cable tension monitor reversal, and 10 or 11 flashes as limits and forces that need reprogramming, 10 for a door that reverses while closing and 11 for one that stops while opening.
The 98022 flashes a two-digit code on its UP and DOWN arrows instead: the number of UP flashes, then the number of DOWN flashes. Its user guide, on the LiftMaster Canada 98022 page, lists 1-1 as sensors not connected or a cut wire, 1-4 and 4-6 as misaligned sensors, and 3-5 as the cable tension monitor. Chamberlain Group’s Wi-Fi jackshaft code chart gives the 8500W the same two-digit arrow codes.
A cable tension monitor code deserves respect. That small sensor on the wall watches the lift cable for slack, and it stops the door when a cable goes loose, which can mean a broken spring or a cable off its drum. Leave the door closed, do not relearn the limits to clear it, and have the spring and cables inspected.
Why is my LiftMaster light flashing 10 times?
A LiftMaster light flashing 10 times is the work light reporting the safety sensors, and the door will not close until they see each other. Chamberlain Group, which makes LiftMaster, says in its Learn button LED guide that the bulbs blink 10 times when a sensor LED is not glowing steadily.
That makes 10 flashes of the big work light a different signal from a count on the small LED beside the Learn button. The same happens on a Chamberlain, whose 10 flashes mean the same sensor fault, because the two brands share one platform.
Clear the beam path, wipe both lenses, and nudge the brackets until the amber and green sensor LEDs both glow steady, as in the 1 to 4 blink section above. If the LiftMaster keeps flashing 10 times with both LEDs steady, the sensor wiring or a sensor head has failed, which is a sensor head and wiring repair.

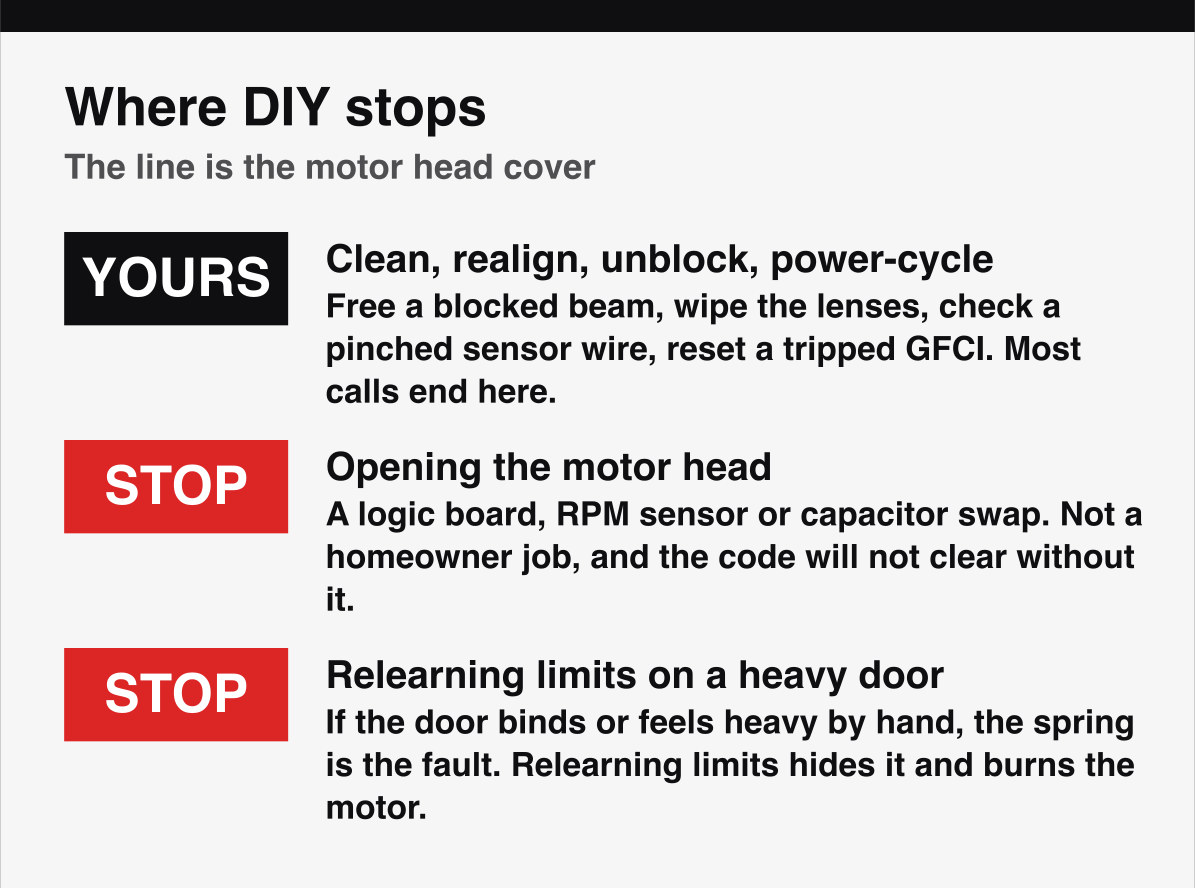

Which blink codes can I clear myself?
You can safely clear the easy ones: clean and realign the safety sensors, free a blocked beam, inspect a pinched sensor wire, reset a tripped GFCI, and power-cycle after an outage. Those fixes resolve the large majority of LiftMaster blink-code calls with no tools and no open motor head.
What you should not attempt is opening the motor head to swap a logic board, RPM sensor, or capacitor, or relearning force and travel limits on a door that already feels heavy or binds by hand. A blink code that returns after you have cleaned the sensors and power-cycled is telling you a component has failed. Forcing repeated cycles against a real fault bakes the motor and turns a parts repair into a full opener replacement. If you are unsure whether the count points at the sensors or the board, our symptom finder for garage doors walks the whole decision tree.
How much does a LiftMaster blink-code fix cost in Ottawa?
A LiftMaster blink-code fix starts at a service call, and board-level repairs start from $185. The diagnostic service call starts at $150, and it is free when it leads to a repair over $250. Sensor and wiring repairs and board-level opener repair start from $185. There are never overtime fees for evenings or weekends.
If the fault is a misaligned or failed safety sensor, the repair sits on the lower end and is often same-day. A failed logic board, RPM sensor, or surge-damaged control board lands in the opener-repair range from $185, parts depending on model. We carry common LiftMaster parts on the truck. If a 1990s LiftMaster keeps throwing board codes, a fresh opener install from $595 is usually the smarter spend than chasing an obsolete board.
When a blink-code fix is a job for a factory-trained technician
Call a factory-trained technician when the LiftMaster blink code returns after you have cleaned the sensors, inspected the wiring, reset the power, and confirmed the beam path is clear. A repeating five or six blink count points at the RPM sensor or the logic board, and 10 light bulb flashes that survive a clean realignment point at the sensor wiring or a sensor head. Both need diagnosis and the correct replacement part.
HUSH Garage Door Service reads LiftMaster blink codes and motor-head LEDs daily, and we come to you across Ottawa and Gatineau. Owner Omar is a factory-trained technician, and every repair is backed by our 90-day Done-Right Guarantee. If the opener strains, reverses every cycle, or simply will not respond, do not keep pressing the button, because that bakes the motor.
Book LiftMaster opener repair in Ottawa and quote the blink count when you call, because it tells us which part to bring. If the door is stuck and cannot wait, use emergency opener repair, same day, or call HUSH at (343) 700-1077. Tell us the number of blinks and we will decode it for you before a technician arrives.
