Troubleshooting
Genie Garage Door Opener Red Light Flashing: Causes
By Omar, Factory-Trained Technician· Updated

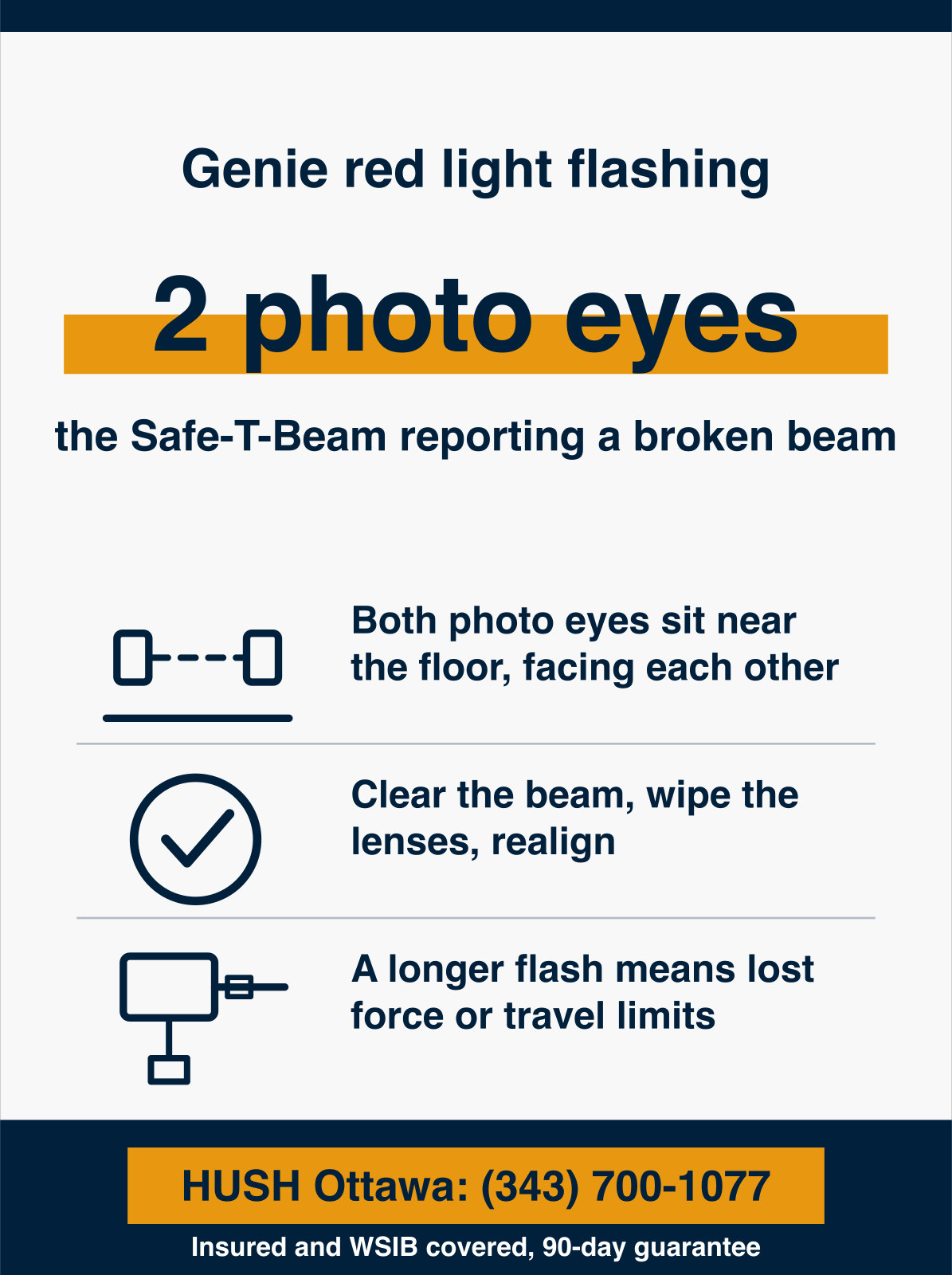

A flashing red light on a Genie opener is the Safe-T-Beam sensors reporting a broken beam. The 2 photo eyes near the floor are blocked, dirty or misaligned, so the opener refuses to close.
A pair of photo eyes sits about six inches off the floor, one each side, pointed at each other. A flashing light almost always means that beam is not landing.
Aligned
Both lights glow steady and the door closes normally.
Blocked
Something sits in the beam. The door reverses and the light flashes.
Misaligned
A sensor got knocked out of true. The light flashes with nothing in the way.
Misaligned is the common one, and it is the one you can fix yourself: loosen the wing nut, aim the sensor until both lights hold steady, then tighten it.
Do this, in order
-
Clear the beam path
Look at the two Safe-T-Beam sensors near the floor on each side of the door. Move any boxes, garbage bins, tools, or drifted snow out of the path between them so the infrared beam can reach across.
-
Wipe both sensor lenses
Clean each lens with a dry, soft cloth. Cobwebs, dust, road salt, and frost on the lens scatter the beam and trigger the flashing red light, even when the sensors are perfectly aimed.
-
Check the LED colours
On a healthy Genie the sending sensor glows steady green and the receiving sensor glows steady red. A flashing or dark receiving LED means the beam is broken or the sensors are out of alignment.
-
Realign the sensors
Loosen the wing nut on the drooping bracket, tilt the sensor until the receiving LED stops flashing and glows steady, then tighten the wing nut without nudging it back out of aim.
-
Inspect the sensor wiring

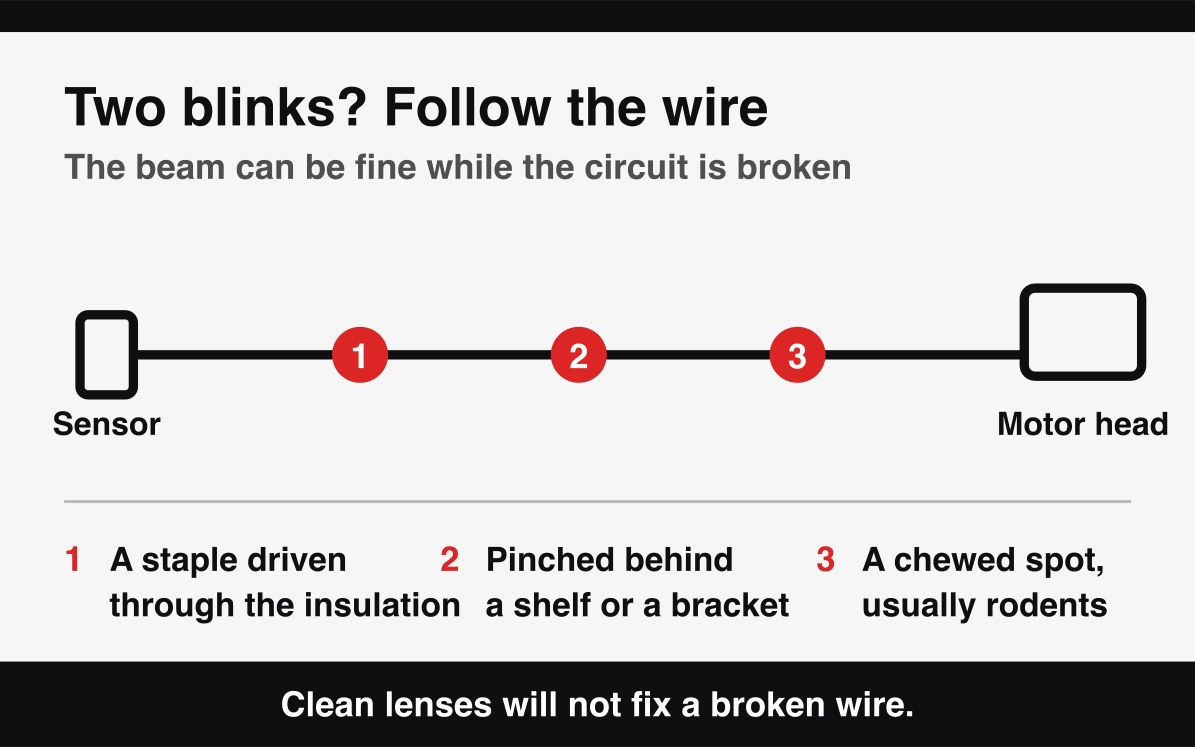

Follow the thin wires from each sensor up to the motor head. Look for a staple through the insulation, a chewed spot, or a wire pinched behind a shelf. A short keeps the red light flashing no matter how clean the lenses are.
-
Test one full cycle
Run the door through one complete open and close cycle from the wall button and confirm the red light goes solid. If it keeps flashing, note the blink count and call a factory-trained technician.
Stuck, or the door is under spring tension? Stop and call (343) 700-1077.
Why is my Genie’s red light flashing?
A flashing red light on a Genie garage door opener is the Safe-T-Beam safety sensors reporting a broken infrared beam. The two photo-eyes near the floor are blocked, dirty, or out of alignment, so the opener refuses to close the door and flashes the red LED instead of a bulb fault.
Genie calls its photo-eye system Safe-T-Beam. One sensor sends an invisible infrared beam across the door opening, and the other receives it. When anything interrupts that beam, the opener will not lower the door, because the safety system cannot confirm the path is clear. The red light flashing is the opener’s way of saying it sees a problem at floor level. Boxes, garbage bins, a parked bicycle, cobwebs, road salt, frost, and a drooping bracket all break the beam. For the same symptom across LiftMaster, Chamberlain, and Craftsman units, see what every opener blink code means.
What should I check first on a flashing Genie?
Before you touch the motor head or reach for a manual, check the two Safe-T-Beam sensors near the floor. A blocked, dirty, or misaligned photo-eye causes the large majority of flashing-red Genie faults, and it is the one fix you can do in a couple of minutes with no tools.
Follow the six steps at the top of this page in order. Clear the beam path, wipe both lenses, read the LED colours, realign the drooping sensor, inspect the wiring, then test one full cycle. The key idea is simple. The opener is not broken. The safety beam is interrupted, and your job is to restore a clean line of sight between the two sensors. This is the exact safety circuit behind garage door safety sensor repair. The opener treats a broken beam as an obstruction whatever the brand, which is also why a garage door reverses before it closes.
What do steady vs blinking Genie LEDs mean?
On most Genie openers a steady LED is healthy and a flashing LED is a fault. The sending Safe-T-Beam sensor glows steady green, the receiving sensor glows steady red, and the motor-head light stays solid. A flashing red receiving LED means the beam is broken or misaligned.
Some newer Genie motor heads also show a small status LED on the powerhead itself. A steady glow there means the unit is powered and ready. A blinking powerhead light, combined with a door that will not close, points back to the Safe-T-Beam circuit in most cases. Do not confuse a flashing red LED with a burned-out work bulb. The bulb is a separate part, and swapping it will not stop the flashing. If the receiving sensor LED is dark rather than flashing, the beam is fully blocked or a wire has gone open, which is the next thing to check.
What do two blinks vs a longer count mean?
The number of flashes narrows down the fault. A short, repeating count, often two blinks, usually flags a Safe-T-Beam sensor wiring problem. A longer repeating count points away from the sensors and toward a force or travel limit that the opener needs to relearn.
| Red flash pattern | What it usually means | First thing to try |
|---|---|---|
| Steady red receiving LED | Sensors aligned, path clear, normal | Nothing, this is healthy |
| Flashing red, no count | Beam blocked, dirty, or misaligned | Clear path, wipe lenses, realign |
| 2 blinks repeating | Safe-T-Beam wiring short or open | Inspect wires for staples and breaks |
| Longer repeating count | Force or travel limit needs relearning | Relearn limits per your Genie manual |
Watch the receiving sensor and the powerhead light, count the flashes before the pause, and match the pattern above. Two blinks tells you to chase the wiring rather than the lenses, because the beam itself may be fine while a pinched or stapled wire breaks the circuit. A longer count tells you the sensors are likely innocent and the opener has lost track of how far the door should travel.
How do I realign the Safe-T-Beam sensors after counting blinks?

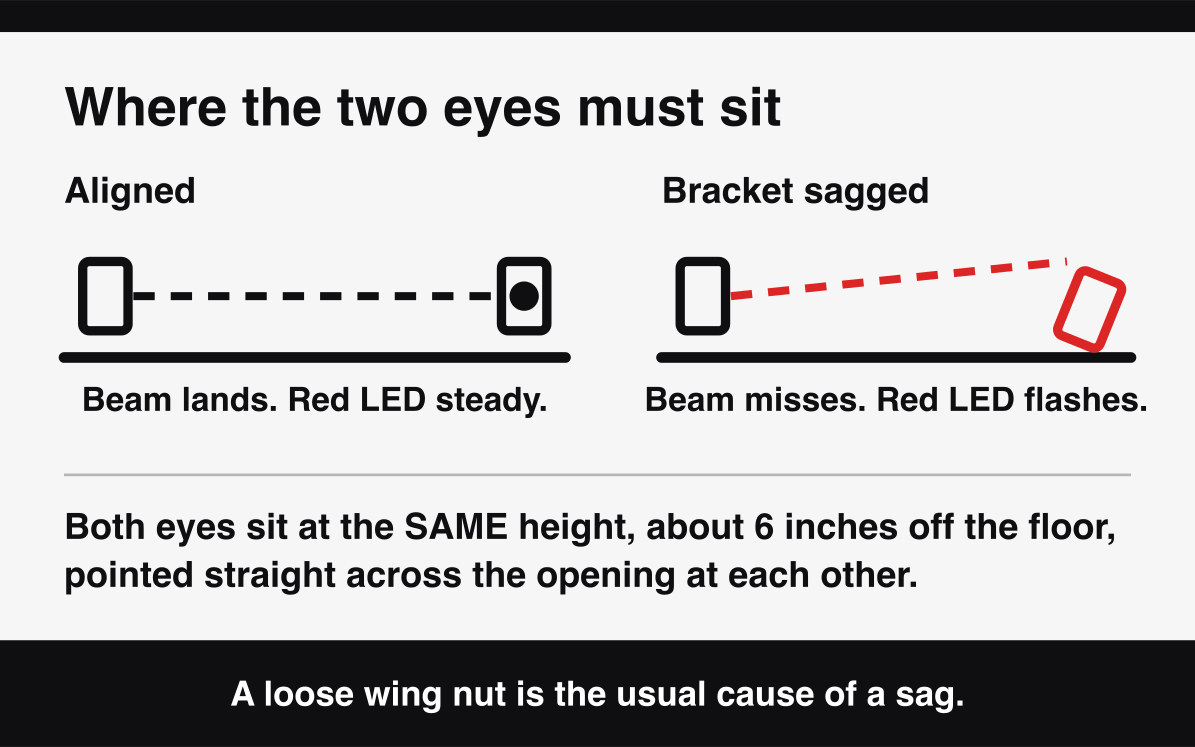

Realign a Genie Safe-T-Beam sensor by loosening the wing nut on the drooping bracket, tilting the sensor until the receiving LED stops flashing and glows steady red, then tightening the wing nut without bumping it back out of aim. Both sensors must sit at the same height, usually about six inches off the floor.
A loose wing nut lets a bracket sag over months until the beam misses the receiver, which is the single most common reason a Genie red light starts flashing on a door that worked fine for years. Aim the sending sensor straight at the receiver across the opening. When the alignment is right, the receiving red LED locks solid and stays that way as you let go. If the LED flickers the moment you release the bracket, the sensor is still slightly off. For a step-by-step on both photo-eyes, read how to align garage door sensors.
How do I relearn the force or travel limits after realigning?
A longer repeating flash, rather than the short sensor count, means the Genie has lost its force or travel limits. The opener no longer knows exactly where the floor and the fully open position are, so it stops short, reverses, or flashes rather than risk crushing something or burning out the motor.
Limits get scrambled by a power outage, a surge, or a stalled door that hit an obstruction. To relearn them, press and hold the Program button on the powerhead and follow the up and down limit steps printed in your Genie manual, because the exact sequence varies by model and screw, chain, or belt drive. Run the door through a full cycle afterward and confirm it seats firmly on the floor without bouncing back. If the door over-travels, stops high, or the flashing returns after a relearn, the travel sensor or control board may be failing, which is a Genie garage door opener repair job rather than a homeowner reset.
When should I stop relearning limits and call a technician?
Call a factory-trained technician when the red light keeps flashing after you have cleared the path, wiped the lenses, confirmed both LEDs are steady, checked the wiring, and tried a relearn. A code that returns then means a sensor head, wire, or control board has failed.
