Garage Door Reverses Before or After Hitting the Floor: Why and the Fix

Why does my garage door reverse instead of staying shut?

Your garage door reverses because its auto-reverse safety system is doing its job, just at the wrong moment. A door that backs up before reaching the floor is reading a sensor block or too little close force. A door that backs up after touching down has its close limit set too short.

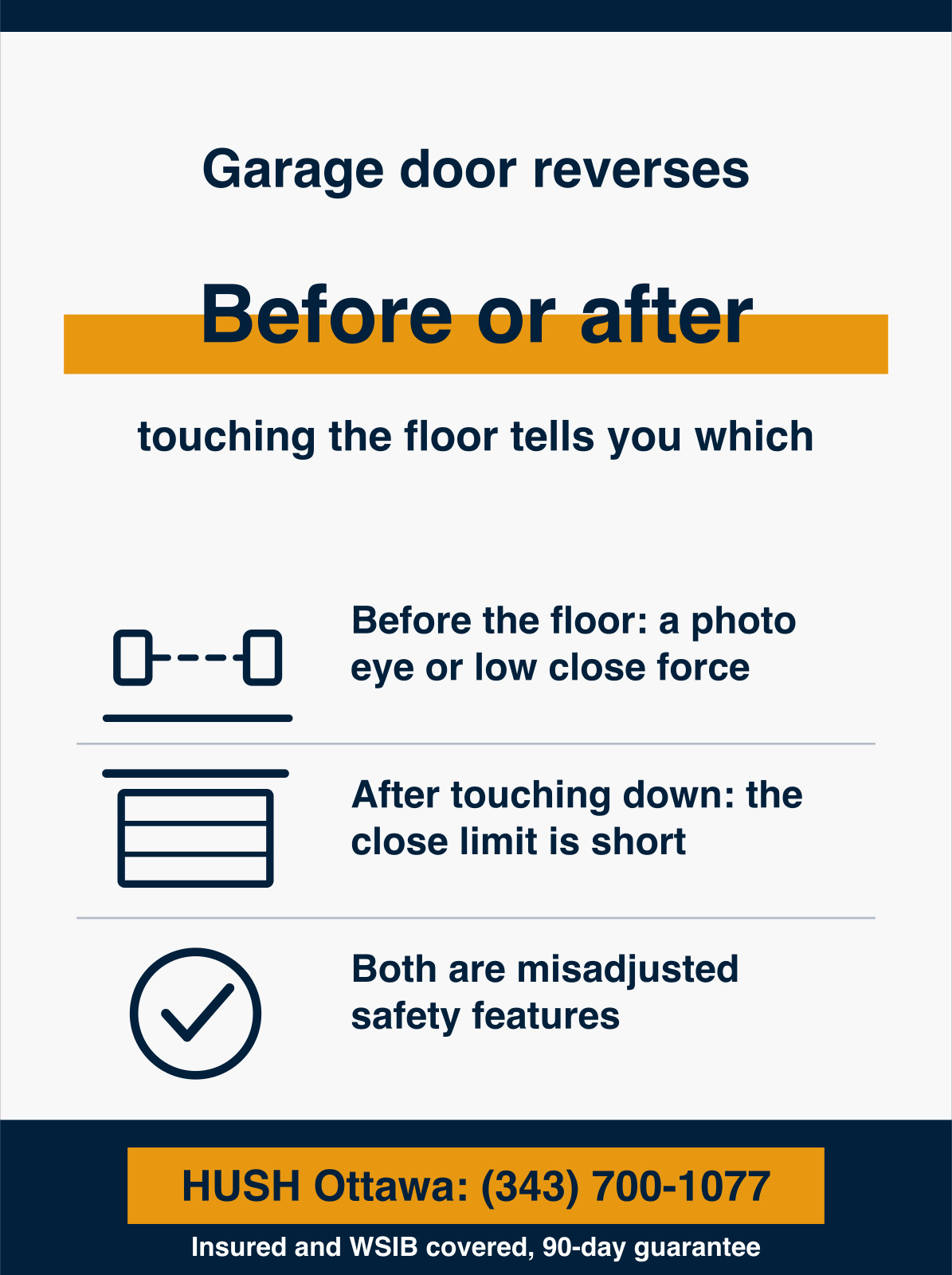

This behaviour is almost never a broken door. It is a safety feature, mandated by the UL 325 standard, that reads the wrong cue. The opener constantly watches two things: the photo-eye safety sensors beam across the bottom of the opening, and the motor’s close force, which is how hard it pushes before deciding it has hit something. Set either incorrectly, or block the beam, and a healthy door reverses. The first diagnostic step is simply watching where the door reverses, because before-the-floor and after-the-floor point to opposite causes.

Why does my garage door reverse before it reaches the floor?

If the door starts down, then climbs back up before it touches the floor, the opener thinks it hit an obstruction. The three usual culprits are misaligned photo-eye sensors, real debris in the path, or a close force set too low to overcome normal travel resistance.

Misaligned or blocked safety sensors

The two safety sensors, also called photo-eyes, sit about six inches off the floor on each side of the door. They project an invisible beam across the opening. Break that beam and the door will not close, or it reverses mid-travel. Both sensor lights should glow steady. A flickering light, a cobweb across the lens, a bumped bracket, or sun glare hitting the receiver all break the beam. Wipe both lenses and nudge the brackets until the lights hold steady. If they keep dropping out, the wiring or the photo-eye itself may have failed, which is covered under garage door opener and sensor repair.

An obstruction, ice, or debris on the threshold

The opener cannot tell the difference between a child’s foot and a frozen chunk of slush. A bin pushed too close, a garden hose, leaves piled at the threshold, or a ridge of ice all read as an obstruction. The door touches it, senses resistance, and reverses exactly as designed. Sweep the threshold clean, clear any ice, and try again. In Ottawa winters this is one of the most frequent reasons a perfectly good door starts reversing.

Close force set too low (catches normal resistance)

Every opener has a close force setting, often a dial or button on the motor head marked force or sensitivity. It tells the opener how much push is normal before it should assume it hit something. If that force is set too low, the door’s own weight and roller friction trip it, and it reverses with nothing in the way. Check the balance first: pull the red release cord and lift the door by hand, since a door that binds will trip the force setting no matter how it is dialled in. If it lifts easily and stays put where you leave it, nudge the close force up a quarter turn at a time, then retest. Set it just high enough to close cleanly, never so high that it would not reverse off a 2x4. If you are unsure where the dial is, see the blinking opener light codes explained guide, since many openers flash the photo-eye and force faults the same way.

Why does my garage door reverse after it touches the floor?

If the door reaches the floor, briefly seals, then opens back up, the cause is the opposite end of the system. Now the opener is overshooting or miscounting travel, so the three usual culprits are a close limit set too short, worn rollers adding drag, or a seal binding on the slab.

Close-limit set too low (thinks it hit something)

The close limit tells the opener exactly how far to travel before the door is fully shut. Set it too short and the opener still has tension to push when it expects the door to be down, so it reads that leftover push as hitting an object and reverses. Find the close-limit adjustment, usually a separate dial or up-down button from the force, and increase the travel slightly so the door reaches the floor with no extra strain. Move in small steps and retest after each change.

Worn rollers or a binding track adding drag

If the rollers are dry, cracked, or worn flat, the door drags as it nears the floor. That extra friction reads to the opener as resistance, and it reverses. The same happens when a track is dented, loose, or out of plumb so the door binds in the last foot of travel. Fresh nylon rollers and a properly aligned, clean track remove that drag. A garage door tune-up and safety inspection replaces tired rollers and re-times the limits in one visit.

A failing weather seal freezing to the slab

The bottom weather seal is rubber, and cold rubber gets stiff. A hardened or cracked seal grabs the concrete instead of compressing softly against it. The opener feels that grab as an obstruction the instant the door lands, and reverses. In freezing weather the seal can also bond to the slab outright. Replacing a brittle bottom seal and keeping a silicone lubricant on it lets the door seat cleanly without tripping the reverse.

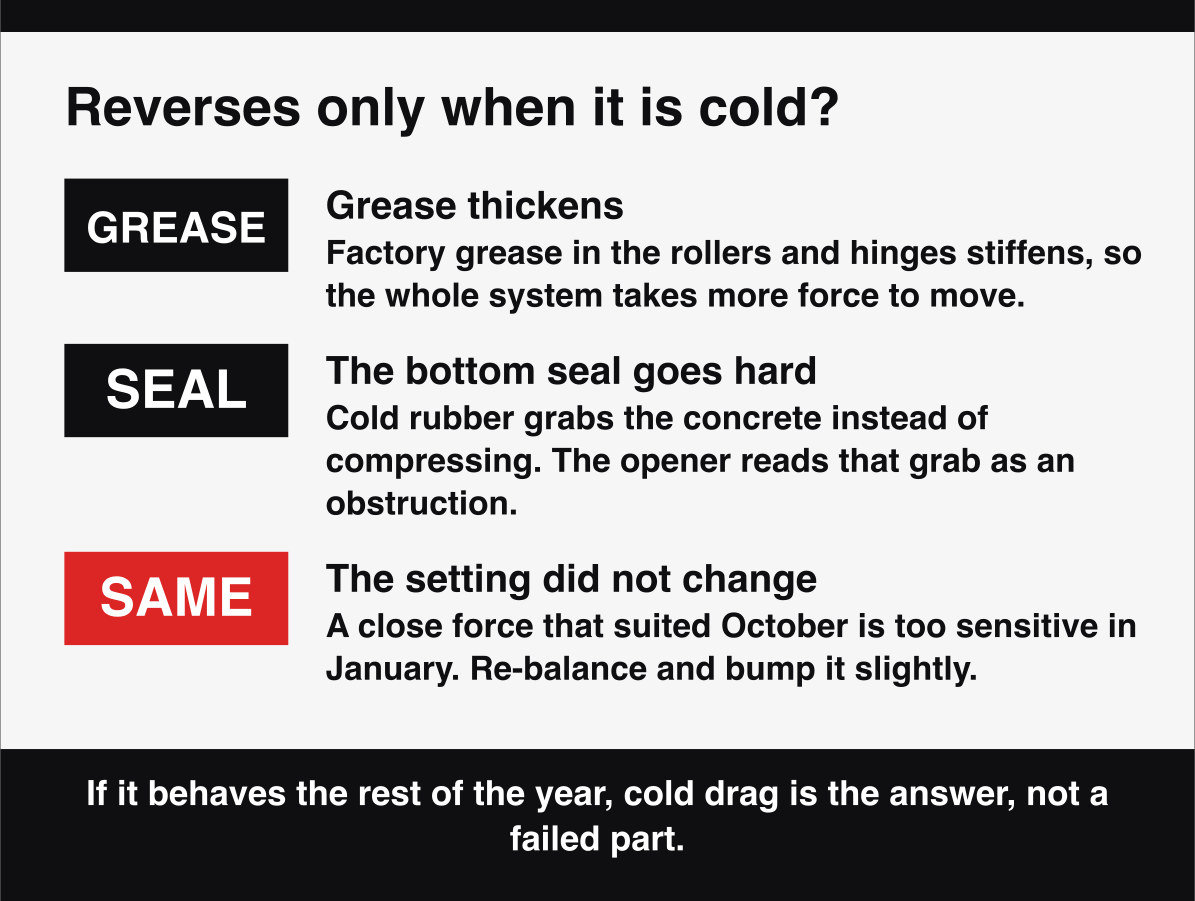

Why does the door reverse more below -20 C in Ottawa?

Reversing is a classic Ottawa and Gatineau winter call because cold adds drag everywhere the opener measures it. Stiff lubricant, hardened rollers, a frozen bottom seal, and ice on the threshold all increase resistance, and the opener reads that resistance as an obstruction.

When the temperature drops below freezing, the factory grease in the rollers and hinges thickens and the rubber seal loses its flex, so the whole system takes more force to move. A close force that worked fine in October is suddenly too sensitive in January, so the door that closed all autumn starts reversing. This is why we often just re-balance the door and bump the close force slightly during a winter visit, rather than replacing parts. If your door reverses only on the coldest mornings and behaves the rest of the year, cold-weather drag is the most likely answer. A door that won’t close at all in the cold is a related but separate problem worth ruling out.

Should I turn the auto-reverse off to stop the door reversing?

No. Never disable the auto-reverse. It is the entrapment protection defined by UL 325, the safety standard every major opener sold in Ottawa is built to, and it stops a closing door from crushing a child, a pet, or the back of a car. Switching it off strips the door of the only system that will stop it.

Some homeowners try to defeat the reverse by cranking the close force to maximum or bypassing the sensors. Both are unsafe and both hide the real fault instead of fixing it. The right move is always to find why the door reverses and correct the sensor, force, limit, or hardware that is tripping it. If the door reverses with the sensors clearly aligned and the path clear, the cause is mechanical or electronic, and that is a job for opener and photo-eye repair, not a workaround.

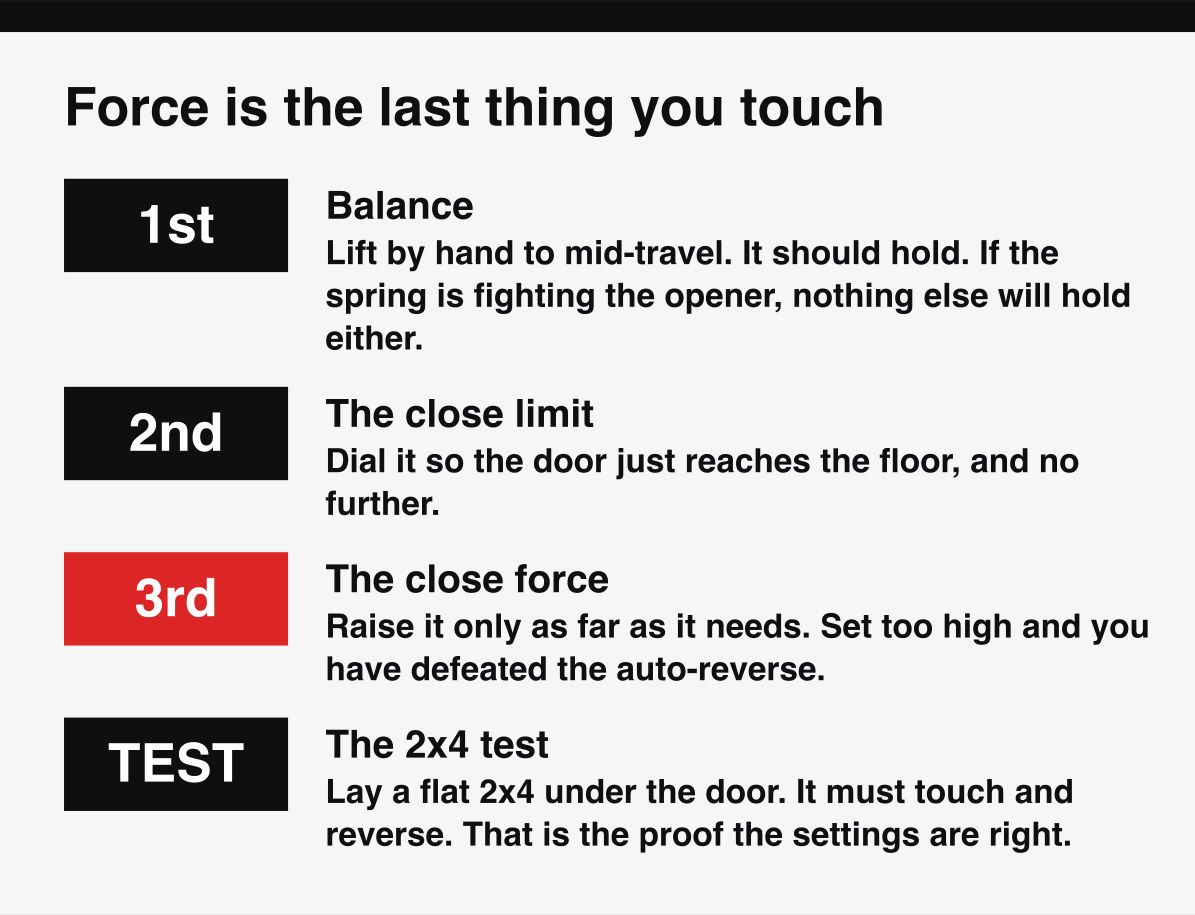

How does a technician set the auto-reverse force and limits correctly?

A technician works in 4 steps: set the balance, dial the close limit so the door just reaches the floor, raise the close force only as far as it needs, then confirm the door reverses off a 2x4. Balance before force is the rule.

Force is set last because if the door is out of balance, the spring is fighting the opener, and no force setting will be both safe and reliable. So the spring tension and door balance get checked first by lifting the door by hand to mid-travel and seeing if it holds. Only then are the limits and force tuned. The final safety reverse test, laying a flat 2x4 under the door and confirming it touches and reverses, is the proof the settings are correct. We run that test on every opener we service, and walk you through it so you can repeat it yourself.

How much does setting the force and limits cost in Ottawa?

A reversing-door fix starts at a $35 to $85 service call, free when the repair runs over $250. Our service call is $35 to $85, and it is free when the repair runs over $250. A pure force and limit adjustment is often handled inside that visit. Opener and sensor repair starts from $185 if a part has failed.

Most reversing problems are an alignment, a clean threshold, or a dial adjustment, so they fall at the low end. If a photo-eye, a roller set, or the opener logic board has actually failed, the repair starts from $185, with new nylon rollers running $150 to $200 for a set. There are no overtime or weekend surcharges. We carry common LiftMaster, Chamberlain, and Genie sensors and parts on the truck, so most reversing calls are solved on the first visit with same-day emergency repair in Ottawa.

When should a technician set the force and limits instead of you?

Call a factory-trained technician when the sensors are aligned and the threshold is clear but the door still reverses, when you suspect a worn roller or binding track, or when adjusting the force and limits does not hold. These point to a mechanical or logic-board fault, not a setting.

A door that reverses with no obstruction and steady sensor lights has usually moved past the DIY stage. It could be a failing photo-eye, an intermittent logic board, a roller dragging only under load, or spring tension that has drifted out of balance. Our factory-trained technicians test the actual force draw on the motor, check the door balance by hand, and inspect the rollers and track so the fix targets the real cause instead of masking it. For the wider picture of opener and door faults, start with our full garage door troubleshooting guide, then call us at (343) 700-1077 and we will get a door that finally stays shut, safely.
