Garage Door Bottom Seal Replacement in Ottawa

What is the garage door bottom seal, and what does it do?

The bottom seal is the flexible strip of rubber or vinyl along the bottom edge of the door that presses against the floor when the door is closed. It blocks cold air, rain, snowmelt, dust, leaves, insects and mice, and it cushions the door as it lands.

Most modern doors hold the seal in an aluminium retainer, a track screwed to the bottom of the door with one or two grooves. The seal slides into those grooves and can be swapped without removing the retainer. Older wood doors often use a seal nailed or stapled straight to the bottom rail instead. Replacing a tired seal is one of the cheapest ways to make a garage door warmer and quieter, and it stops the drafts that drive up your heating bill.

How do I know my garage door bottom seal needs replacing?

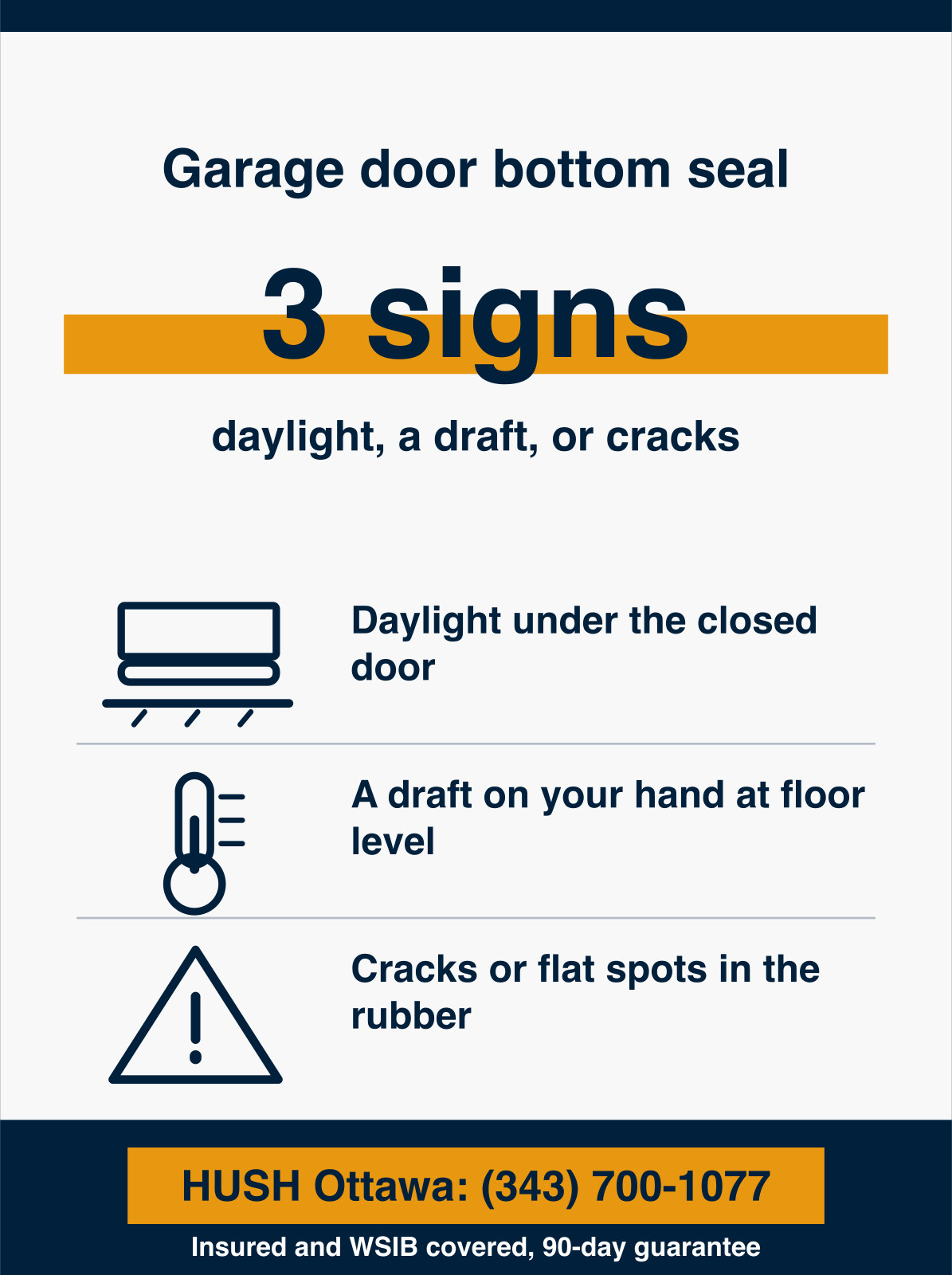

The clearest sign is daylight under the closed door, or a draft on your hand at floor level on a cold day. Cracked, flattened or torn rubber, water or leaves blowing in, and mice in the garage all point to a seal that no longer meets the floor.

Daylight, drafts and blowing snow

Close the door in daytime and look along the bottom from inside. Any line of light means the seal is not sealing. In winter you will often see fine snow blown across the threshold, or feel the garage running noticeably colder than it should. A door with good insulation but a failed bottom seal still loses heat fast, which is why the seal matters as much as the door’s R-value.

Cracked, hard or flattened rubber

Healthy seal rubber is soft and springs back. Once it goes hard, cracks at the folds, or stays squashed flat, it can no longer fill the gap as the floor flexes with temperature. Road salt and years of freeze and thaw age it quickly in Ottawa.

Can I replace a garage door bottom seal myself?

A garage door bottom seal is a DIY job when the door has an aluminium retainer track. You open the door partway, pull the old rubber out of the groove, then feed the new seal in from one end with a little dish soap as lubricant. Replacing the retainer itself, or fitting a threshold seal, is trickier.

Cut the new seal a little long and trim it once it is fully seated. The job is harder than it sounds when the retainer is bent, corroded or packed with old rubber, or when the door is heavy and you cannot safely hold it part way. If the door fights you, or you are not sure the spring is sound, call us instead. A bottom seal is never worth working under a door that is not properly counterbalanced, so if you suspect a broken spring, stop and get it checked first.

What size and type of bottom seal does my door need?

Seals are matched to the retainer shape, and there are 3 common ones: T-style, U-style and bead. The common styles are T-end (one or two beads shaped like a T), bead or astragal, and U-shaped or J-shaped lips. Using the wrong profile means the seal will not lock into the groove or will pop out under load.

Bring a short offcut of the old seal, or a clear photo of the channel end-on, when you buy a replacement, or let a technician match it on site. We carry the common Ottawa profiles on the truck, so a weather seal replacement is usually a single same-day visit. Double-wide doors need a longer seal in one continuous piece, never two short lengths joined in the middle, which leaks at the seam.

Bottom seal versus threshold seal: which is better for an Ottawa garage?

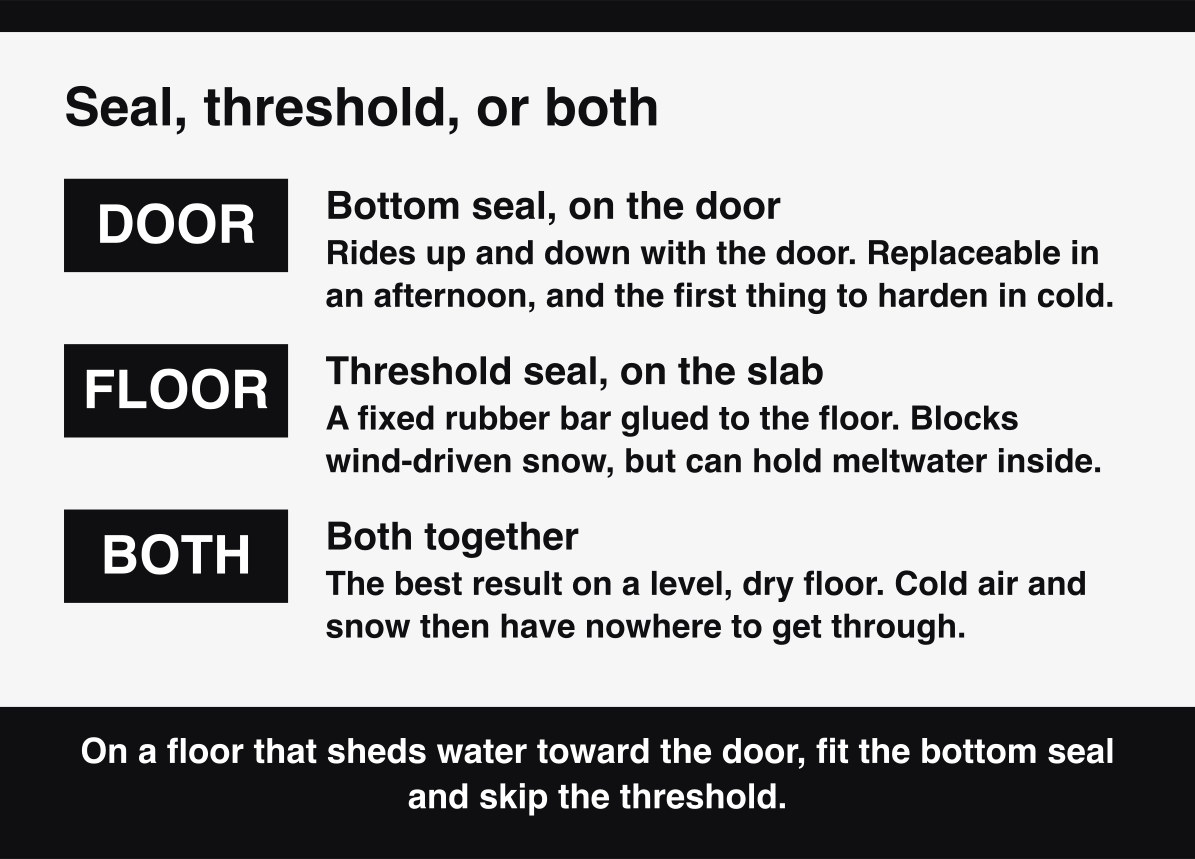

A bottom seal attaches to the door and moves with it. A threshold seal is a rubber ramp bonded to the floor that the door closes against. On a cracked, sloped or worn floor where a bottom seal cannot fill the gap, a threshold seal gives the door a clean, flat surface to meet.

The trade-off is water. A threshold seal can hold meltwater and slush inside the garage instead of letting it drain out, so it suits a level, dry floor better than one that sheds water toward the door. For many Ottawa garages the best result is both: a fresh bottom seal on the door and a threshold seal on the floor, so wind-driven snow and cold air have nowhere to get through. We will tell you honestly on site which your garage actually needs.

Why do garage door bottom seals fail faster in Ottawa?

Cold hardens the rubber, road salt tracked in on tires degrades it, and repeated freeze and thaw cycles crack it at the folds. The worst damage comes when a door freezes to the ground and the opener is forced, which tears the seal off the retainer in one go.

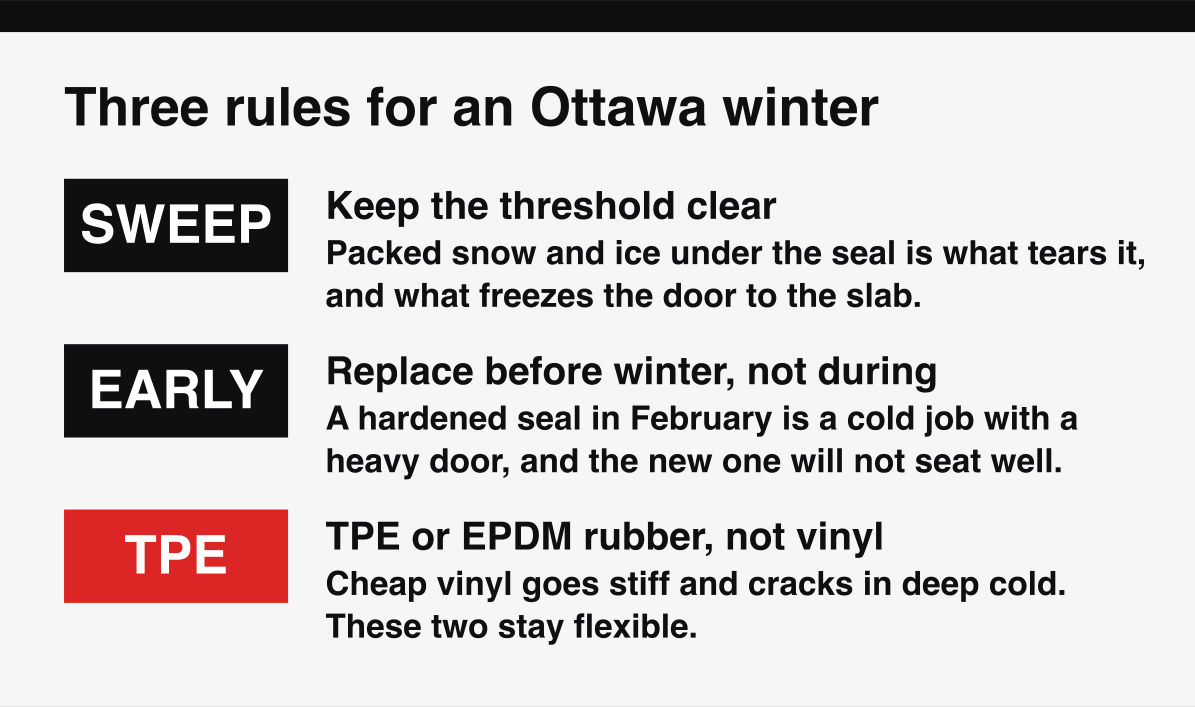

Keep the threshold swept clear of snow and ice, replace a hardened seal before winter rather than during it, and choose a TPE or EPDM rubber seal rather than a cheap vinyl one, because those stay flexible in deep cold. If your door is already stuck to the slab, do not force it, follow our guide on a garage door frozen to the ground. Once the door is free and the threshold is clear, the routine in how to winterize a garage door is what makes the seal last the season. A worn seal is a small repair on its own, so see what garage door repair costs in Ottawa and we will replace it the same day.
