Garage Door R-Value: What It Means and What You Need in Ottawa

What is garage door R-value?

Garage door R-value rates how well the door section resists heat flow, on a scale running from about R-0.85 for bare steel to R-18 for a thick polyurethane door. A higher R-value means better insulation and a warmer garage. The number comes from the foam type and thickness inside the panel. Thermal breaks and weatherseals matter in real use, but the R-value calculation does not include them.

Think of R-value as the door’s thermal score. A bare single-skin steel door has almost none, about R-0.85, so it leaks heat like an open window. A double-skin steel door with injected polyurethane insulation can reach R-16 to R-18, a meaningful jump for an Ottawa or Gatineau home. The garage door is usually the largest single opening in the building envelope, so its R-value matters more than most people expect. If you want the wider context on choosing a door, start with the complete new garage door buying guide.

What R-value do you need for a garage door in an Ottawa winter?

For an Ottawa winter that reaches -30 C, choose an R-16 or R-18 polyurethane door. R-16 is the value pick for a detached or unheated garage. Step up to R-18 for an attached garage, a heated shop, or a bedroom above the garage where comfort and energy loss matter most.

Ottawa and Gatineau sit in one of the colder climate zones in eastern Canada, with stretches below -25 C every January. In that cold, anything under R-16 in a steel door will sweat, frost on the inside skin, and bleed heat into the garage. Builders in newer subdivisions across Kanata, Barrhaven, and Orleans increasingly fit R-16 as the baseline for attached garages. We rarely recommend going lower than R-16 here, and for a finished room above the garage, R-18 pays for itself in comfort. Once you know your number, insulated garage door installation in Ottawa starts from $1,995 installed for a single door, or financing on approved credit.

R-12 vs R-16 vs R-18: which garage door insulation is worth it?

R-16 is the sweet spot for most Ottawa homes. R-12 is fine only for a detached garage you never heat. R-18 is worth the small extra cost on an attached garage, a heated shop, or a door under a bedroom. The biggest gain is moving from no insulation to R-16.

Here is how the common ratings compare for our climate:

• About R-0.85 (single-skin steel): no insulation, loud, and cold. Avoid in Ottawa unless the garage is purely a detached storage shed.
• R-12 (two-layer polystyrene): entry-level insulated. Acceptable for a detached, unheated garage. It takes the edge off but still frosts in a deep freeze.
• R-16 (two or three-layer polyurethane): the value pick. Warmer, quieter, and stiffer. Right for most attached and detached garages across Ottawa and Gatineau.
• R-18 (three-layer polyurethane): the cold-climate choice. Best for an attached garage, a heated workshop, or a room above the garage. The price gap over R-16 is small.

Do not chase the highest R-value for its own sake. The biggest real-world gain is moving from a bare door to R-16. Beyond R-18, gains shrink and seals and installation quality matter more than the catalog number. For a side-by-side look at the trade-off, read insulated vs non-insulated garage doors compared.

Polyurethane vs polystyrene: which insulation gives a higher R-value?

Polyurethane gives a higher R-value, R-16 to R-18 against about R-6.3 for polystyrene board at a similar thickness. It is injected as a liquid foam that expands to fill the entire panel and bonds the two steel skins together. Polystyrene is a loose foam board slid into the panel, so it insulates less, rattles more, and adds no structural strength.

For the same panel thickness, injected polyurethane insulation delivers a higher R-value, a stiffer and quieter door, and better dent resistance than polystyrene insulation. That is why a polyurethane door reaches R-16 to R-18 while a polystyrene door of the same thickness lands around R-9 to R-12. Construction layers tell the same story:

• Single-layer: one steel skin, no insulation.
• Two-layer: steel skin with a polystyrene board behind it.
• Three-layer (sandwich): injected polyurethane trapped between two steel skins, the warmest and strongest build.

Triple-layer construction with 24-gauge steel and a polyurethane core is the standard we fit for Ottawa attached garages. For a detached garage you never heat, a cheaper polystyrene door can be fine. The insulation lives inside the panel, so the foam choice, not just the R-number, is what you are really buying.

Does an insulated garage door actually save money on heating?

Not directly, and any article promising 10 to 15 percent off your heating bill is quoting a number with no source behind it. Your home’s insulated boundary is the wall between the garage and the house, plus the floor above the garage. It is not the overhead door.

That distinction decides the whole answer. Heat leaving through the garage door is leaving an unconditioned buffer space rather than a heated room, so it does not appear on the gas bill the way the marketing suggests. What an R-16 or R-18 door does buy is a garage that is not sitting at outdoor temperature, and that is worth real money in 3 situations: a room over the garage, a heated workshop, or anything stored that must not freeze. You also get a stiffer, quieter, harder-to-dent door, which is often the strongest honest reason to pay for one. If a lower bill is the actual goal, insulating that common wall and the floor above it is the higher-yield fix and the door comes second. Pair the right door with a fresh bottom seal and frame weatherseals, since a great R-value leaks through bad gaskets. The other upgrades worth the money are covered in garage door insulation and window upgrades worth paying for.

How does an attached, heated or detached garage change the R-value you need?

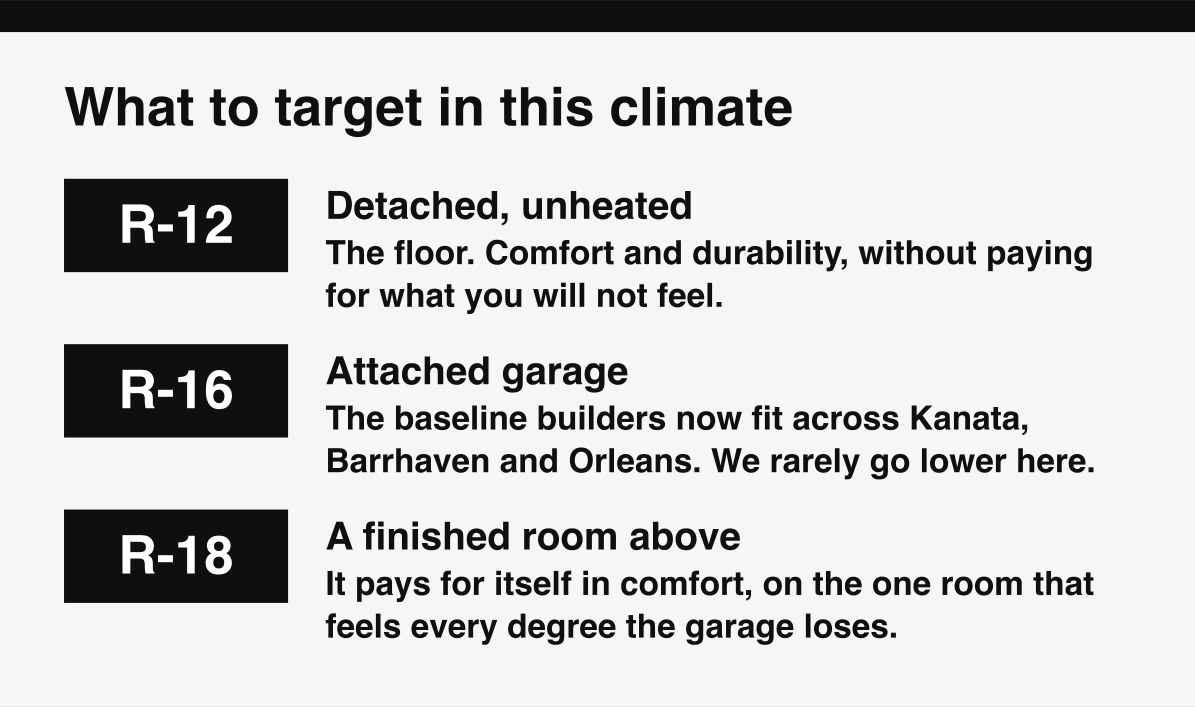

Your garage type sets the target: R-12 for a detached garage, R-16 attached, R-18 heated or with a room above. An attached garage sharing a wall with living space, or with a room above it, justifies R-18. A heated garage or workshop also wants R-18 to protect heating costs. A detached garage you never heat can drop to R-12 or R-16 for durability and quiet.

Match the door to how you use the space:

• Attached garage (most Ottawa homes): R-16 minimum, R-18 if there is a bedroom or bonus room above. This is where insulation does the most for your comfort and energy bill.
• Heated garage or shop: R-18. You are paying to heat the space, so a higher R-value protects that investment.
• Detached, unheated garage: R-12 to R-16. R-16 polyurethane is still worth it for the quieter, sturdier door, but the warmth payoff is smaller.

In short, the closer the garage is to where you live and the more you heat it, the higher the R-value should be. We confirm the right rating during a free in-home measure across Ottawa and Gatineau.

How is garage door R-value measured (and why catalog numbers vary)?

R-value is calculated for the door section alone, while building codes use U-factor for the whole installed door, and DASMA TDS 163 states plainly that the 2 numbers are not comparable and are not reciprocals of each other. No R-value rates the whole assembly. TDS 163 calculates R-value for the door section only, counts the steel skins as negligible, and says the result should not be used for a complete door. Some marketing quotes only the foam at its thickest point, which inflates the number.

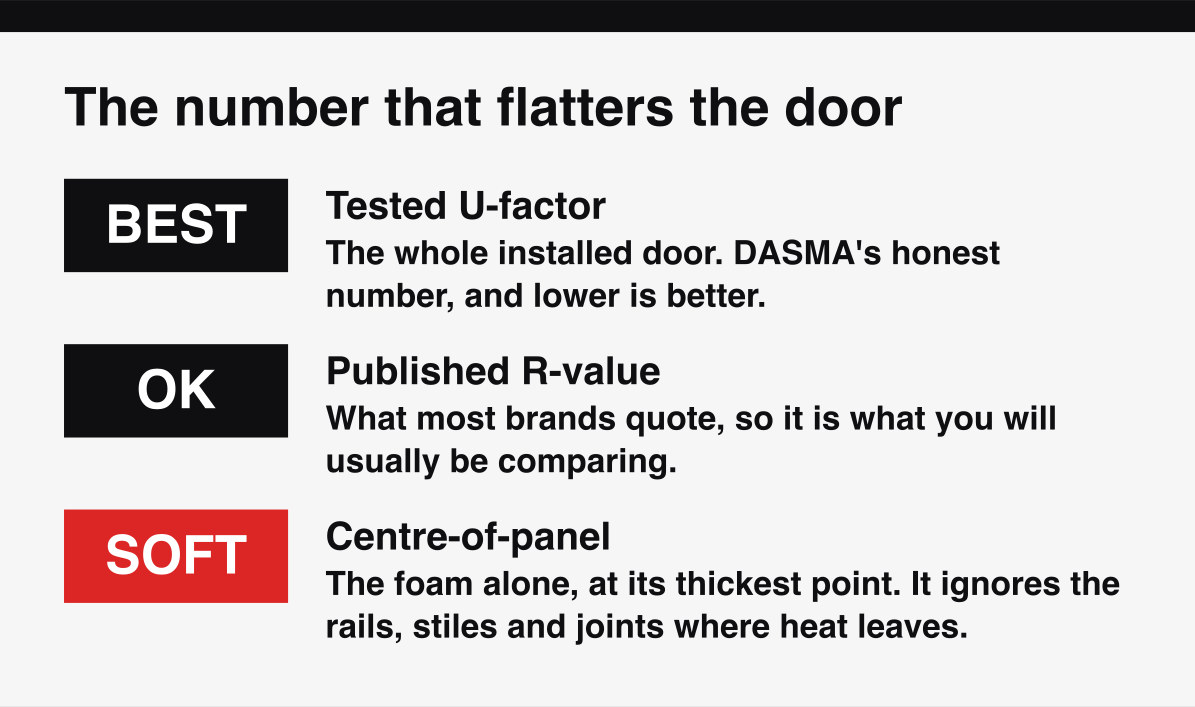

Watch how a brand states it. A center-of-panel R-value measures the foam alone at the thickest spot and ignores the rails, stiles, and joints where heat actually escapes. A computed R-value ignores those too, which is why DASMA says it should not be used for a door assembly and why a tested U-factor is the honest whole-door number. A thermal break, the strip that separates the warm inner skin from the cold outer skin, keeps the rated number real in winter use, because without it the steel conducts cold straight through. Garaga publishes an R-16 rating for lines like Garaga Standard+ and Garaga North Hatley, and Garaga itself notes that real performance also depends on the section joints, weatherstripping and end blocks. When you compare two doors, make sure you are comparing the same kind of R-value.

R-value vs U-factor: which number should you compare?

Compare whichever number both doors publish, but understand they are inverses. R-value measures resistance to heat flow, so higher is better. U-factor measures the rate heat passes through, so lower is better. You cannot convert one to the other, because DASMA states that for garage doors U-factor and R-value are not reciprocals. Most brands quote R-value, so shop on that.

If you ever see a U-factor instead, do not panic. You cannot convert an R-16 or R-18 rating into a U-factor. DASMA notes that treating a tested U-factor as the inverse of a calculated R-value is a common misconception, because the U-factor is measured on the complete installed door while the R-value is calculated on a single section. Compare doors on the same number: R-value against R-value, or tested U-factor against tested U-factor. The trap is mixing them up, since a low number is good for U-factor but bad for R-value. The simplest rule: for garage doors in Ottawa, ask for the R-value, confirm it rates the whole door, and look for a thermal break and quality weatherseals to back it up. Get those three right and the door will perform through a real Canadian winter.
